Description

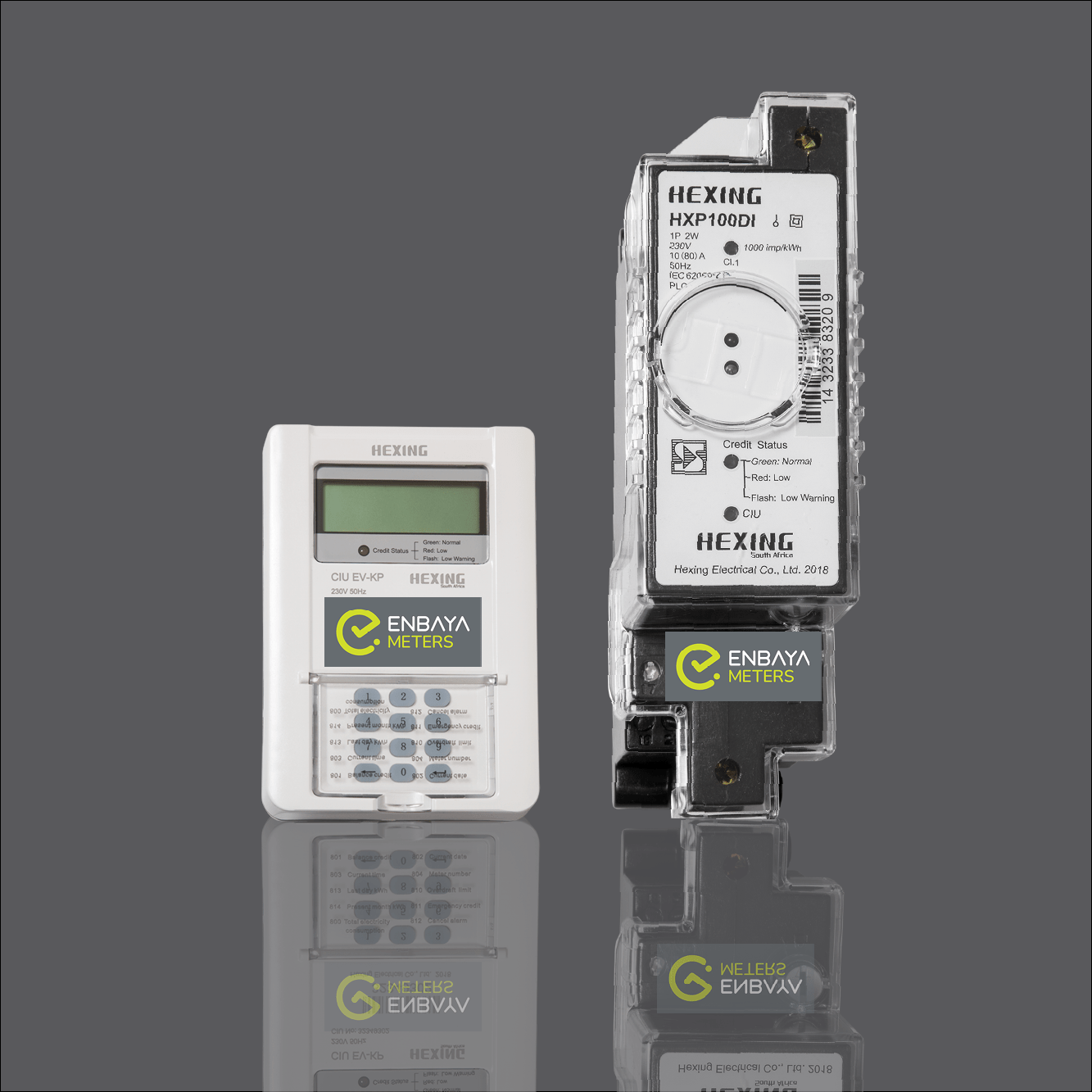

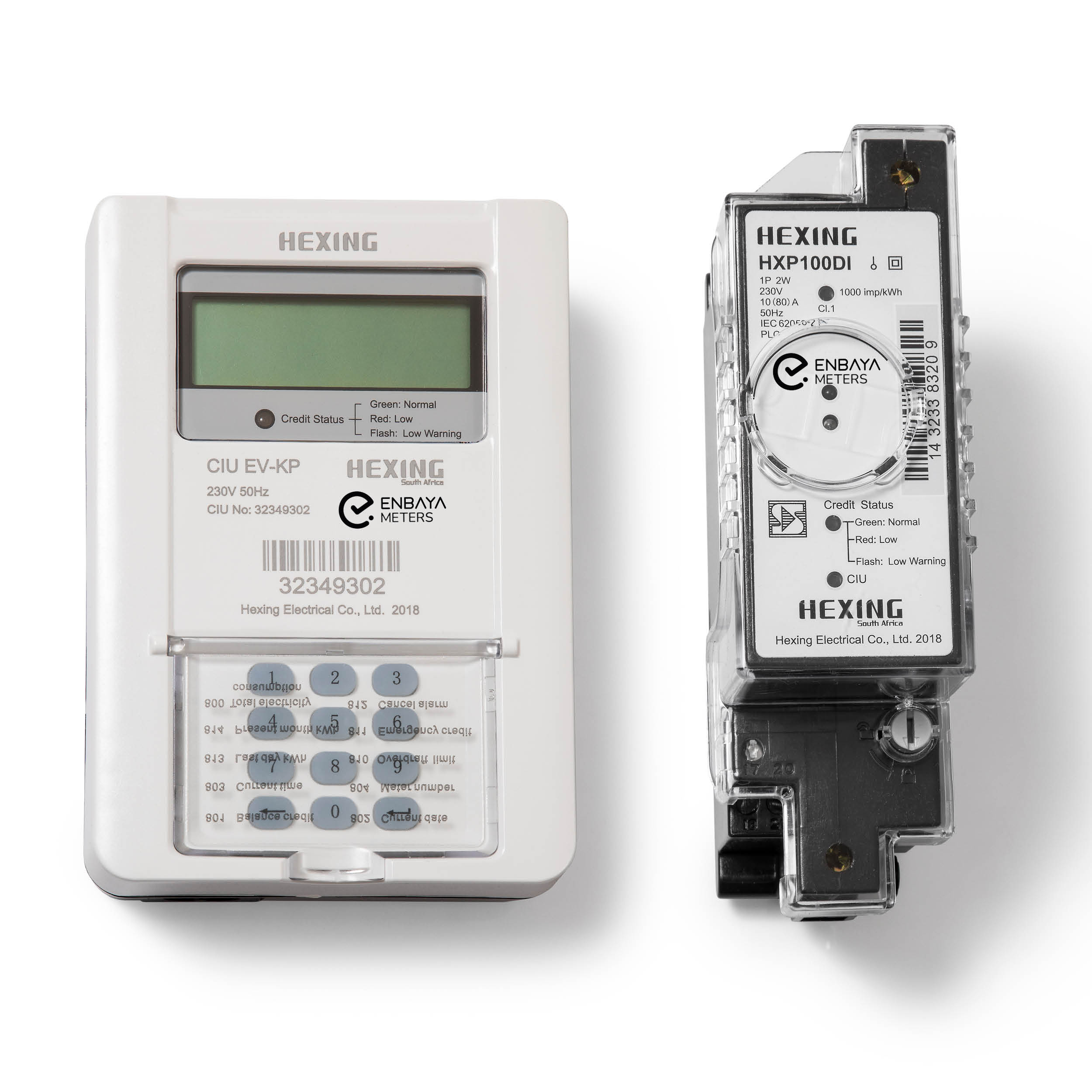

The Hexing Single Phase Din Rail Prepaid Electricity Meter (HXP100DL) is the perfect solution for modern residential houses, offering accurate energy monitoring and easy top-ups.
FEATURES
- STS compliant split keypad meter
- Critical metering, token decryption and relay disconnection functionality
- separate Energy Management Unit (EMU) and User Interface Unit (UIU)
- The EMU is a DIN rail mounted can be installed into a cabinet
- The UIU is plugged into any AC mains power socket
- The UIU communicates with the EMU over the existing AC mains power circuit using Power Line Communication (PLC) technology.
- STS standard protocol ensures an open and secure operating system.
- Optical Communication, Open Protocol: DLMS/ COSEM Standard.
- Internal switch relay for load demand control by configuration or remote communication.
- Easy and Secure Crediting
- Credit transfer from Point of Sale is facilitated by entering a 20-digit STS credit token into the UIU via the keypad.
POWER CONTROL MANAGEMENT:
When the credit limit recorded in the EMU reaches 0.0kWh, the EMU built-in relay will be automatically disconnected. The relay will also disconnect in protection of the EMU whenever a Power Limit overload condition occurs. In addition to these automatic disconnect events the EMU relay will also disconnect when instructed to do so by inputting a 20-digit STS Clear Credit token.
COMMUNICATION:
Provides an IEC62056-21 compliant optical communications port to enable local connection for interrogation access to stored information and upload via a handheld unit. Communication between the EMU and UIU is facilitated by means of PLC. The maximum distance between the EMU and UIU is 150 meters.
LOW CREDIT WARNING:
The UIU provides the consumer with both visual and audible low credit warnings. When credit is low the UIU displays an indicator. Once the credit level drops below a predefi ned level the audible buzzer will sound.
